Descriptions:

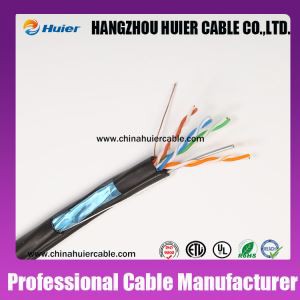

CCTV CAT5E CAMERA CABLE, UTP CAT5E, 2 OR 4 PAIRS, TWISTED, BC/CCA CONDUCTOR INSULATED WITH HDPE, 2DC POWER WIRES, 500' or 1000' SPOOL, FOR CCTV SECURITY SYSTEM, .
Physical Constructions:
Materials & Diameters | |
Conductor: | Bare Copper /Copper Clad Aluminum 33% or 55% |
Size | 24AWG |
Insulation: | High Density PE |
Diameter | 0.90mm |
Cores | 4 or 8 |
Pairs | 2 or 4 |
Color of Cores | Any color you want |
Power Wires | 18AWG/2DC |
Conductor | Bare Copper /Copper Clad Aluminum 33% or 55% |
Strands | 7 /11/24 strands |
Area of Conductor | 0.75sqmm, 1.00sqmm |
Insulation | PVC / PE |
Rip-Cord | Nylon |
Cable Shape | Figure 8 or overall Jacket |
Features:
CAT5E + 18/2 Composition CCTV Cable
Combination of video and power for asier CCTV camera installation.
CAT5E and Power wires combined together
Jacket: PVC or PE
Shape: Figure 8 or overall jacket
Suitable for CCTV surveillance camera/IP Camera/ WLAN Home Security Systems.
Footage or meter marking: Descending or ascending every 1 ft (1m).
Packaging: 500' / 1000' Wooden Spool in Carton
More knowledges about CCTV Lan Cables:
CCTV Cat5E or Cat6 cable is always used in the installation of analog cameras because it is cheaper than CCTV Coax cable and the video signal can go farther. When installing an analog camera with Cat5E or Cat6, only two of the four pair are needed. One pair is used with a balun for video transmission and the other pair is used for electricity to transmit the power.
Founded on: year of 2004
Address: Lin'an District, Hangzhou City, Zhejiang Province, China.
Area of Manufacturing Building: 25000m ²
Area of Office building: 1500 m ²
No. of Employees: 80 plus
Certificates: ETL/CE/RoHS /CPR
