1.Detailed Description
1. Inner Conductor: CU, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: Bonded, Non-bonded, Single, Double
4. Braid wire material: CU, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.15mm, 0.16mm
6. Braid net: 48, 64, 72, 80, 96, 128 and more
7. Braid coverage: 40%, 50%, 60%, 80%, 90% and more
8. Jacket: PE/PVC
9. Jacket degree: 60, 65, 68, 70,75
10. Customized requirement welcomed.
2.Construction
Conductor | Material | Bare Copper |
Nom. Dia. | 14AWG(7*0.75mm) | |
Dielectric | Material | Foam PE |
Nom. Dia. | 7.24± 0.02mm | |
Shield | Material | Al foil+ Al braiding)*2 |
Coverage | 85% | |
Jacket | Material | PVC/PE |
Nom. Dia. | 10.30± 0.10mm | |
Nom. Thick | 0.86mm |
3.Electrical Specifications
Characteristic Impedance(Ohm) | 75 |
Nominal Velocity of Propagation (%) | 85 |
Nominal Capacitance(pF/m) | 50 |
Sparker Test(VAC) | 4000 |
SRL(dB, min) | 20 |
4.Attenuation
Attenuation Performance[68°F(20°C)] | ||
Frequency(MHZ) | Maximum(Db/100ft) | Maximum(dB/100m) |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
250 | 2.05 | 6.72 |
300 | 2.25 | 7.38 |
450 | 2.75 | 9.02 |
600 | 3.18 | 10.43 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |
1450 | 5.42 | 17.78 |
1750 | 6.10 | 20.01 |
5.Application
The

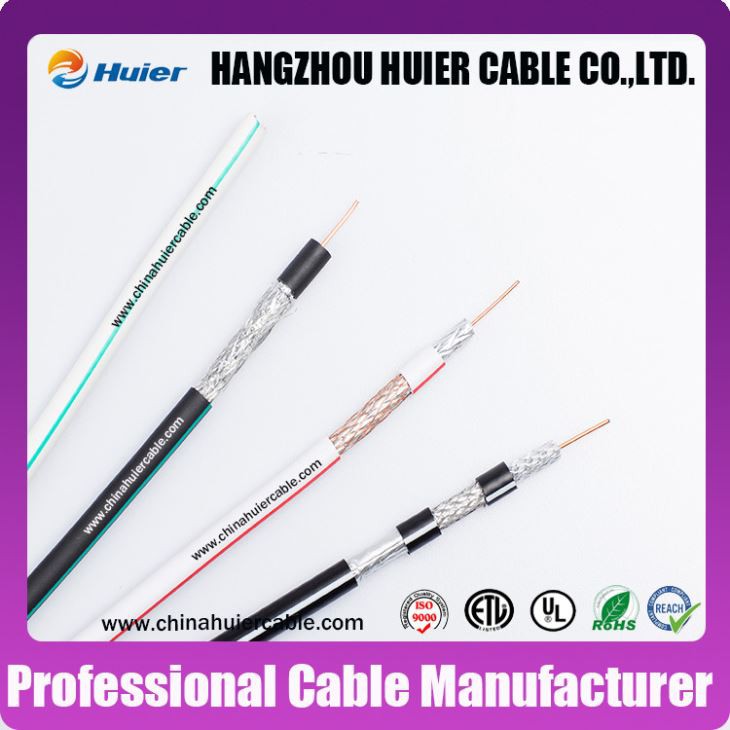

RG 213 coax cable is a low-loss coated cable that is noncontaminating.
Coax Cables transmit radio signals, video signals, measurement signals
and data signals and are often used in home entertainment systems. The
RG 213 is generally considered the superior coax cable because it is
low-loss and consists of seven braided strands of bare copper.
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
