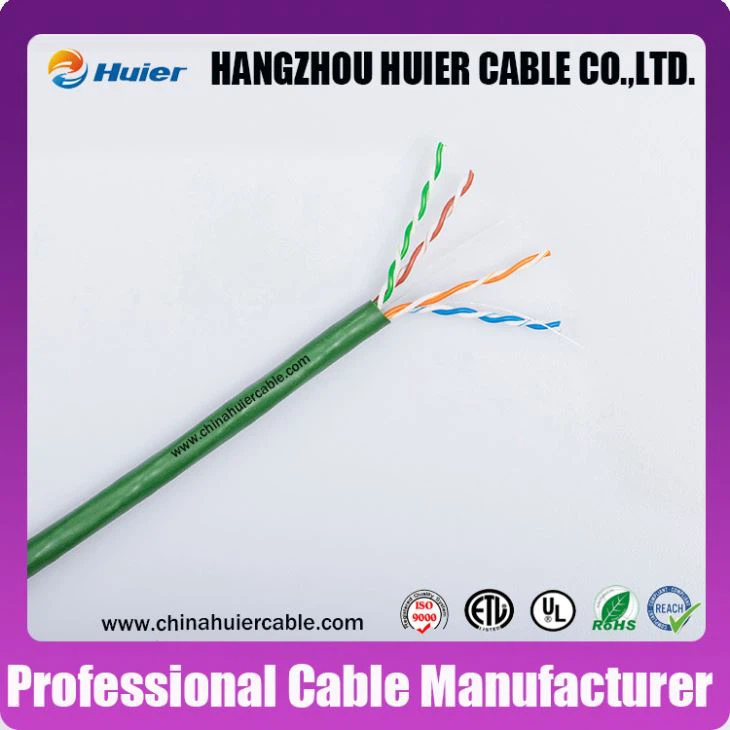

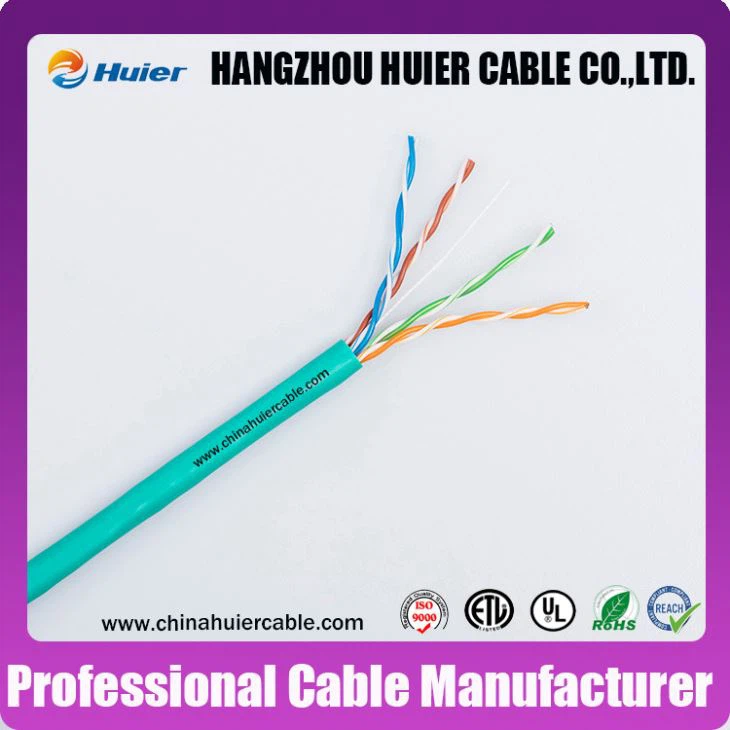

China Hot Sale LAN Cable UTP Cat5e Cat6
100% Fluke Test Pass!
Conductor :24AWG solid bare copper
Length: 1,000 ft(Or as client's request).
Packaging: Box/ wooden reel
Pallet Quantity: 45 Boxes/Pallet(Or as client request)
Quality PVC jacket with sequential foot markers
4 Unshielded Twisted Pair (F/FTP)
Differential twisted pairs to reduce crosstalk
Rated Temperature: (C) 75
CE, RoHS,ISO9001 Compliant
Tech Specs
| Attenuation (Maximum) | 33 dB/100 m (328 ft.) at 100 MHz |
| Capacitance Unbalance (Maximum) | 330 pF/100 |
| Characteristic Resistance | 1-100 MHz |
| Conductor Gauge | 26 AWG, stranded, bare copper |
| Conductor Resistance | 14.07 ohms/100m |
| Construction | Mylar tape, tinned-copper drain wire, Al/Mylar tape, PVC (CM) jacket |
| NEXT (Minimum) | 35.0 dB/100 m (328 ft.) at 100 MHz |
| PS-NEXT | 32.0 dB/100 m (328 ft.) at 100 MHz |
| Mutual Capacitance (Maximum) | 5600 pF/100m |
| Warranty | 5 Years |
Application:
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013
