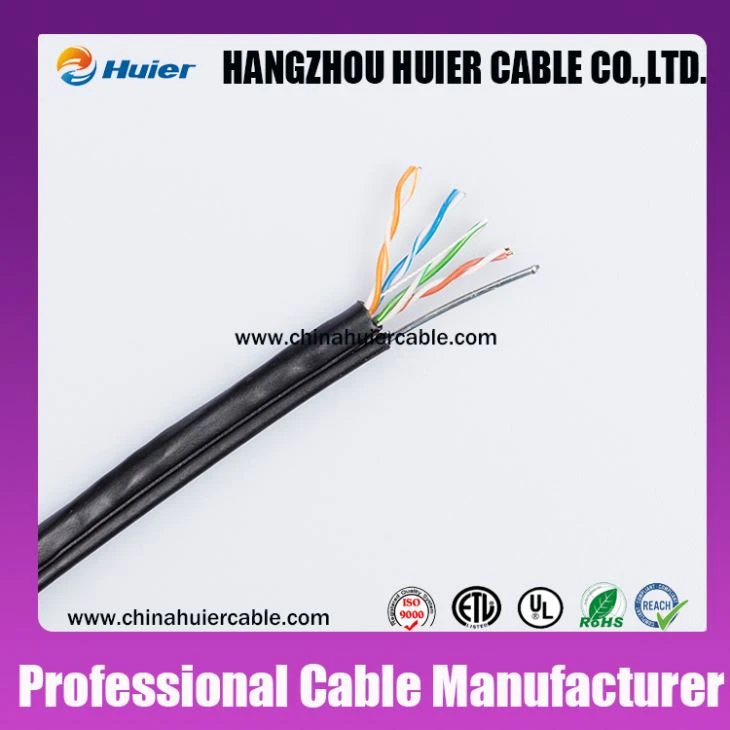

UTP CAT5E Outdoor Direct Burial With Gel
* UTP CAT5E (4 Twisted Pairs) Cable, Category 5E, 100MHz,
* Direct Burial - With Flooding/ Jelly - PE/LSOH Jacket
* Fluke Pass, CE/RoHS
Constructions:
Conductor: 24AWG COPPER OR CCA
Insulation: HDPE
Cores/pairs: 8/4
Flooding / Jelly: Available
Rip cord: Available
Sheath: PVC/PE/LSOH, Optional: UV/RoHS
***Cable could be customized as per client's requirements
Mechanical Properties:
Elongation: minimum 300%
Temperature range: -20 up to 75°C
Tensile strength: min 1.68kg/mm²
Conductor resistance: maximum 13.01Ω/100m
Resistance unbalance: maximum 2%
Insulation resistance: maximum 150Ω/km
Mutual capacitance: maximum 5600pF/100m
Capacitance unbalance: maximum 330pF/100m
Impedance: 100±15W
Spark test: 2000V
Velocity of propagation: 67%
Packing: 305M pull-box, 2 boxes in a carton
Features & Applications :
UTP Unshielded Twisted Pairs
for Outdoor use, direct burial with flooding/gel
Lead free PVC
Use for Computer Network Cabling Project, Broadband Network Communication.
UTP CAT 5E: Category 5E cable includes four twisted pairs of copper or CCA wires in a single cable jacket. UTP CAT5E is an unshielded twisted pair cable designed for extremely high signal integrity. In 2001, the CAT 5 cabling specification was made obsolete and superseded by the category 5e specification. Cat5e is the most common cable used today for voice and data networks. It’s most commonly used for 100Mbit/s networks.
