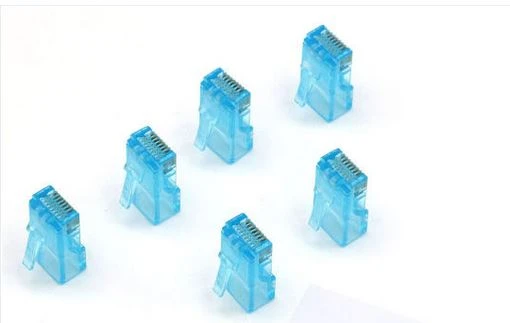

UTP FTP modular plug, cat5e RJ45 Connector
Crystal head
Product Description
Key Specifications/Special Features:
-RJ45 plug, unshielded/shielded solid/stranded 8P8C
-Contact: Phosphor bronze
-Surface plating silver: 0.5 to 5um
-Jack: PC (UL94V-0)
| Front Cover: | PC(UL94V-0)+ABS |
| Back Cover: | High Impact Flame Retardant PC |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact Flame Retardant PC |
| Sliding Block: | Flame Retardant PBT |
| IDC terminals: | Accepts 22,24,26 AWG Solid Wires |
| Mount Plate | 1mm cold-rolled plate, electrostatic powder spraying process on the surface |
| Contact Pin: | whole phosphor bronze wire with nickel plating, then 50μm gold plating layer |
8p8c UTP cat6 rj45 connector / rj45 modular jack for Solid Wire , 100 pcs / box
Key Specifications/Special Features:
-RJ45 plug, unshielded/shielded solid/stranded 8P8C
-Contact: Phosphor bronze
-Surface plating silver: 0.5 to 5um
-Jack: PC (UL94V-0)
Descriptions
| Cable to plug tensile strength | 7.7kg/minimum |
| Durability | 750 mating cycles (minimum) |
| Designed according to FCC standard and fully compatible with various jacks | |
| Packing | 1000 or 100 pieces/bag with sticker to mark specification |
| CAT 5e FTP/STP connector/plug and CAT 6 UTP/FTP/STP connecters are also available | |
Features:
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are OEM;
3. Payment: We accept T/T and L/C and Western Union;
4. Packing:
1) Inner packing: 1000pcs/PE bag.
2) Outer packing: Carton box.
3) Other packing available according to client's request.
4. Any question, Please contact us in first time. We'll reply as soon as possible.
Specifications:
1. Types: 8P8C, 8P6C, 8P4C and 8P2C
2. Suitable cable: CAT 5e
3. Housing material: PC
4. Contact material: Phosphor bronze
5. Plating: Gold over nickel
6. Plating thickness: 3μ (standard), 6, 15, 30 and 50μ (optional)
7. Available in various transparent colors or shields
