Brief Descriptions:

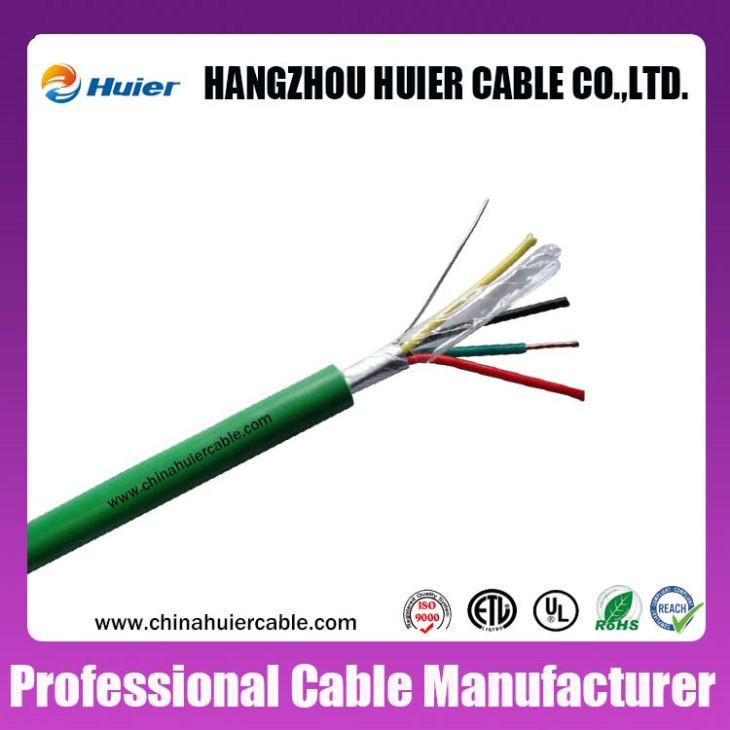

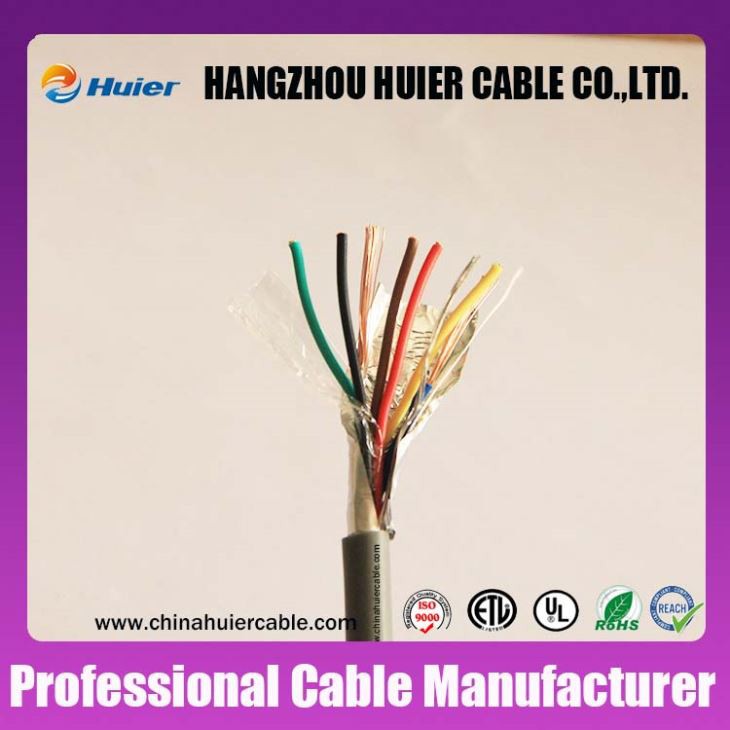

22AWG SCREENED ALARM CABLE, SHIELDED , MUTLIPLE CONDUCTORS, COPPER OR CCA CONDUCTOR, 22AWG, 7 STRANDED WIRES, PVC INSULATION, 250' OR 500' PLASTIC REEL WITH BOX.

Technical Specification Sheet:

Cores*Gauge	Specifications	ID of insulation	Thickness of Jacket
2*22AWG	2C*7/0.250+PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
4*22AWG	4C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
6*22AWG	6C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
8*22AWG	8C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
10*22AWG	10C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
12*22AWG	12C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
14*22AWG	14C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm
16*22AWG	16C*7/0.250 +PET+7/0.250+AL	1.07mm	0.5mm-0.7mm

Electrical & Mechanical Charateristics (@20℃):

Operating Voltage	300V Max
Operating Temp.	-20℃ up to +70℃
DC Resistance of Conductor	≤10Ω/100m
DC Resistance of Insulation	≧0.010Ω/km
Breaking Elongation Rate of Conductor	≧15%
Tension of Insulation	≧16MPa
Tension of Jacket / before aging	≧10MPa
Breaking Elongation Rate of Insulation	≧200%
Jacket Breaking Elongation /before aging	≧125%
Jacket Breaking Elongation /after aging	≧100%
Note: testing data changes when the specifications are different.

Application:

Widely used in Home Burglar Alarm, Public Security System, Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits.

Suitable for use in conduit and the installation of Wiring Burglar Alarm, Public Address Systems ,Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power Limited and anti-interference needed

Advantage
High quality at factory price
Quality Inspection as per ISO9001
Short Lead-time and Prompt Shipment
Better payment term
CE/RoHS/ETL/ISO9001

OEM and Customers'designation are welcome.
