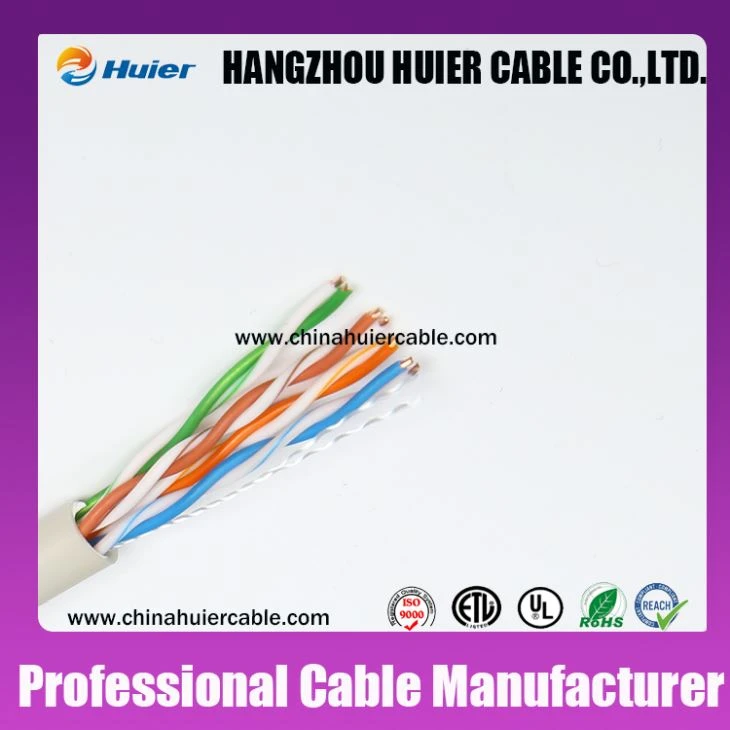

UTP CAT5E Cable

Center Conductor:

Bare Copper or Solid CCA (Copper Clad Aluminum)

Construction:

24AWG

Cable:

8 wires formed into 4 insulated twisted pairs.

Core Insulation:

HDPE High Density Polyethylene

Construction:

0.90±0.05mm

Core Identification:

4 colour coded twisted Pairs: Blue+White/Blue, Orange+White/Orange, Green+White/Green, Brown+White/Brown.

Screening/Shielding:

UTP-Unshield 'unscreened' twisted pairs.

Outer Sheathing:

PVC (Polyvinyl Chloride), Flameproof / LSZH (Low Smoke Zero Halogen) / PE (outer door).

Jacket Overall Diameter:

4.8±0.1mm

Outer Jacket Colour:

Customization. with different color stripe is available.

Stripping cord:

nylon

Packing:

1000FT(305M)/Easy Pull Box

Making:

As required by customer

Test:

100% pass Fluke test.

Supplied on 305M(1000ft) Roll, housed within an 'easy pull' outer Box.

Resistance unbalance:

<5%

Current Capacity:

500mA per core

Minimum bending radius:

5 × O.D

Operating temperature:

-20℃ to +60℃

Weigh:

6Kg(including box)

1
4
8
10
16
20
25
31.25
62.5
100

100+15
100+15
100+15
100+15
100+15
100+15
100+15
100+15
100+15
100+15

2
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17
22

68.3
59.3
54.8
53.3
50.3
48.8
47.3
45.9
41.4
38.3

66.3
55.2
49
46.8
42.1
39.5
36.9
34.2
24.4
16.2

68.8
56.7
50.7
48.8
44.7
42.8
40.8
38.9
32.8
28.8

66.3
57.3
52.8
51.3
48.3
46.8
45.3
43.9
39.4
36.3

64.3
53.2
47
44.8
40.1
37.5
34.9
32.2
22.4
14.3

66.8
54.7
48.7
46.8
42.7
40.8
38.8
36.9
30.8
26.8

22
25
26.5
27
27
27
26.3
25.6
23.5
22.1
