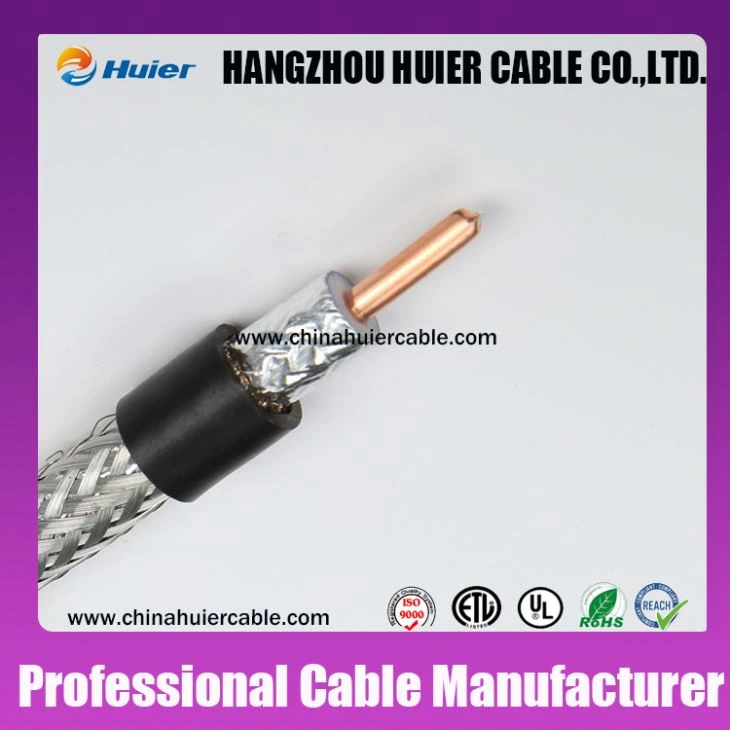

Cable Type: 50 ohm Coaxial Cable S400

Descriptions:

50 ohm Coaxial Cable S400 used for Radio and Telecommunications, Low Loss, 50ohm Coaxial cable, Solid Bare Copper Conductor, Foam PE, Bonded APA Foil, TC Braiding, high coverage, PVC/PE Jacket.

Typical Constructions & Specifications


Construction	Materials & Nominal dimensions
Conductor	2.74mm bare copper
Dielectric	7.24mm Foam PE
Shield 1	Bonded APA Foil,
Shield 2	Tinned copper braiding with min.90% coverage
Jacket	10.29mm PVC/PE/LSZH
Electrical characteristics
Characteristic impedance		50 ±3Ω
Nominal capacitance		84pF/m
Nominal velocity of propagation		85%
Spark Test of Jacket (VAC)		4000
SRL		20dB
Attenuation (at 20°C)
Frequency	Maximum	Maximum
50MHz	0.90dB/100ft	2.95dB/100m
150MHz	1.50dB/100ft	4.92dB/100m
300MHz	2.19dB/100ft	7.20dB/100m
450MHz	2.70dB/100ft	8.86dB/100m
960MHz	4.03dB/100ft	13.22dB/100m
1500MHz	5.10dB/100ft	16.73dB/100m
2000MHz	6.00dB/100ft	19.68dB/100m

Special Features

High Quality 50 ohm Coaxial Cable with very low loss.

Pure Bare Copper Conductors, Solid Type

Tinned Copper Braiding with high coverage over 90%.

Application:

Widely used for industrial and commercial two-way radio frequency applications (including radio and telecommunications) . Ideal for many applications, including HF, shortwave, amateur radio and CB installations. Also comonly used for Wi Fi, GSM, 3G, 4G Repeaters, Radio Antennas and Receivers, RF Jumper Feeder Aerials

Packaging: 305m Wooden Spool, with pallet.

Lead time: within 20 to 35 days after deposit is received.

Payment terms: T/T 30% deposit in advance and 70% before the shipment, or, Irrevocable L/C at sight

Approvals: CE/RoHS Directive-compliant
