High Fire proof LSZH Fire Alarm Cable 1AWG for Government School Hospital Fire Alarm System

Descripition：

Conductor:18AWG Soild Cooper

Insulation: LSZH

Shield:0.001 inch Aluminum/Mylar

Drain:24 AWG Solid Tined Copper

Jacket:LSZH
Nominal Insulation Thickness: 0.008 inches
Nominal Jacket Thickness: 0.014 inches
Outside Diameter: 0.151 inches

Features:
Two bare copper insulated conductors with an overall shield and a drain. The assembly has an overall jacket. Rated for use from -20°C to +60°C. Suggested voltage rating: 300 volts.

Basic Fire Alarm Systems

Most fire alarm systems fall into two categories: conventional or addressable. Conventional fire alarm systems are a simple, common, time-proven technology, which protect a large percentage of commercial buildings today. Their reliability and low cost make them ideal for small to medium size properties. Conventional fire alarm systems are characterized by a fire alarm control panel, which holds the entire system's intelligence. Connected to this panel via hard wires are a number of detectors or initiating devices such as smoke, flame or heat detectors. Additionally, the control panel is wired to notification devices such alarm bells, strobe lights and automatic dialers.

Fire alarm systems serve as a life line and a connection to first responders. When a signal is transmitted to central monitoring center, failure is not an option, it must be guaranteed. Conventional Fire Alarm Systems have been around for many years and have changed little. They provide well proven technology protecting many hundreds of thousands of properties worldwide.

Application:

Fire alarm cables may be used in smoke alarms and detectors, voice communications, addressable fire alarm systems, microprocessor controlled systems, pull boxes, burglar alarms, wiring of fire alarms, and fire protective circuits.

Our advantage：

We have special recipe in the Jacket so that can make it strong function in fire proof. It won't smoking or release toxic gas in a long time make sure people have enough time to get away from the fire. That's most important.

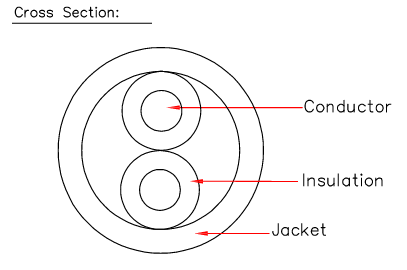

Construction & Material

Item		Specification
Product		High Grad LSZH Fire Alarm Cable
Conductor	Construction	Soild 2×18AWG
Conductor	Material	Bare Copper
Insulation	Material	LSZH
	Min. Thickness
	Avg. Thickness	0.245mm
	Diameter	1.524mm
	Nom. Lay Length	114mm
	Color	Variety Color Choices
Jacket	Material	LSZH
	Min. Thickness
	Avg. Thickness	0.508mm
	Diameter	4.318mm
	Color	Variety Color Choices
Approximate Cable Weight		20 Ibs/Kft


Electrical Properties
Nom. DC Resistance Per Conductor @20℃	6.43 Ohms/Kft.nom.
Capacitance Between Conductor@1KHz	35 pF/ ft.nom.
Operating Voltage	300V / RMS max.
Temperature Rating	-20℃ to 60℃

1(2) 2(1) 3(1)

Hot Tags: high fire proof LSZH fire alarm cable 18AWG for government school hospital fire alarm system, China, manufacturers, suppliers, factory, customized, bulk
