Descriptions:

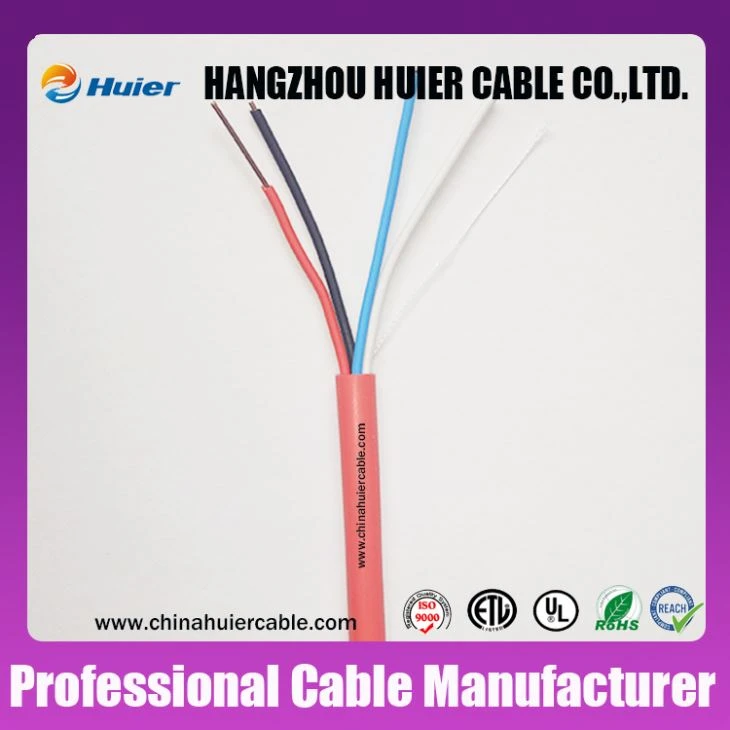

Solid Copper Fire Alarm Cable, Solid Bare Copper conductor, 2Cores, 14AWG, PVC / LSZH Jacket, 1000ft reel
SPECIFICATION
Conductor: Solid Bare Copper Conductors (100% Copper)
Gauge: 14 AWG (1/1.63 mm)
Cores: 2
Insulation: Fire Retardant PVC (AVG. Thickness 0.20-0.25mm)
Insulation Diameter :2.13mm
Ripcord: Yes
Jacket : PVC (Fire Retardant) (AVG. Thickness 0.45-50 mm)
Jacket Diameter : 5.0 ± 0.02mm
Color: Red
Technical Data
DC resistance Max 9.38 Ω / 100 m
Reference Standard UL 1424, ANSI/NFPA 70
FEATURES
Conductor: Solid Bare Copper Conductors (100% Copper)
Gauge: 14 AWG
2X14AWG
Designed to meet UL 1424
RoHS Compliant
Application: Fire Alarm System
Package: plastic reel+pull-box, or wooden spool+carton
Applications:
Wiring of Fire Alarms System
Smoke Detectors
Burglar Alarms
Fire Protective Circuits
