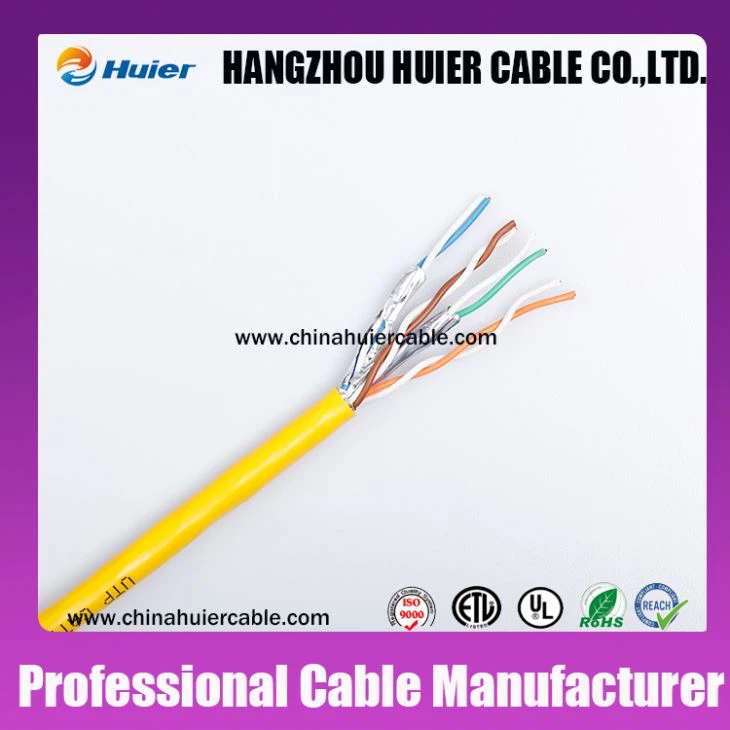

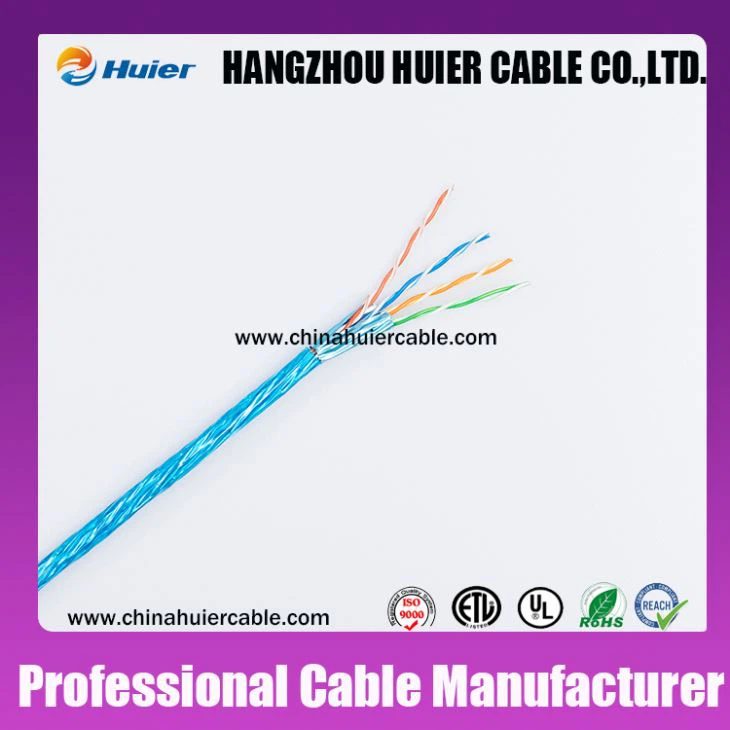

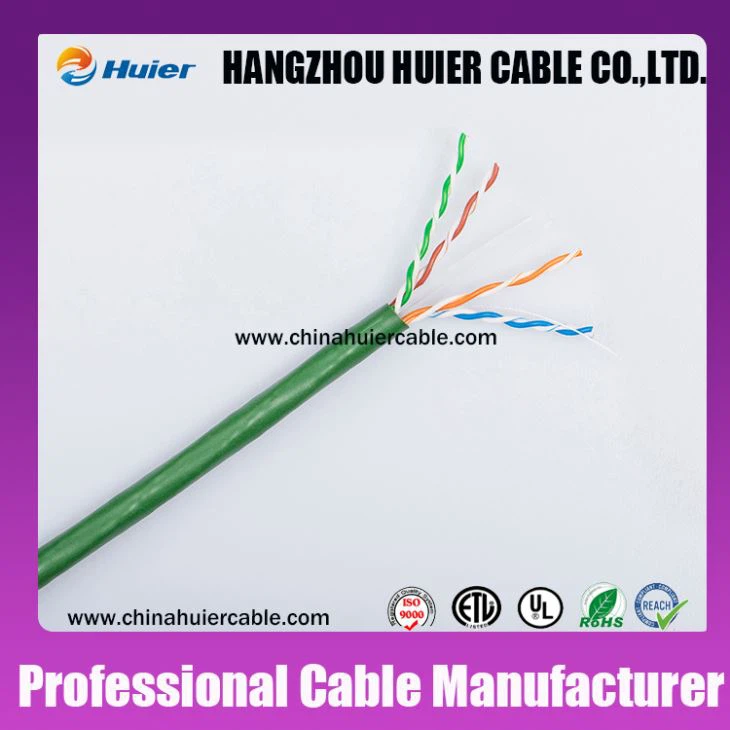

100m Pass Fluke Test Network LAN Cable Cat5e
1 Product specification
| Constrution | Material | Diameter(mm) |
| 1.Conductor | Bare copper/CCA 33% or 55% | 0.51±0.005 (0.49-0.51) |
| 2.Insulation | High-density polyeth | 0.93±0.020 |
| HDPE COLOR | as regular design | |
| 3.Rip cord | nylon | 300D/200D |
| 4.Jacket | PVC/PE/LSZH/ | 5.50±0.20 |
| 5.Jacket color | as customer required |
3 Electrical Properties
| Conductor Resistance | Max.9.38 ohm/100m |
| Resistance Unbalance | Max.2.5% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 69% |
4 Technical Performance
| Frequency MHZ | Attenuation (dB/100M) | RL (dB) | Next (dB) | ELFEXT (dB/100M) |
| 1MHZ | 2.1 | 15 | 62 | 61 |
| 4MHZ | 4.3 | 15 | 52 | 49 |
| 8MHZ | 6 | 15 | 48 | 47 |
| 10MHZ | 6.9 | 17 | 46 | 41 |
| 16MHZ | 8.9 | 17 | 43 | 37 |
| 20MHZ | 10.0 | 17 | 42 | 35 |
| 25MHZ | 11.1 | 21 | 41 | 34 |
| 31.3MHZ | 12.4 | 20 | 39 | 31 |
| 62.5MHZ | 17.7 | 19 | 34 | 25 |
| 100MHZ | 23.4 | 17 | 31 | 21 |
5.package:
Huier Cable has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
Huier Cable has four complete production lines. 10 thousands box of UTP Cat5e cable per month.
