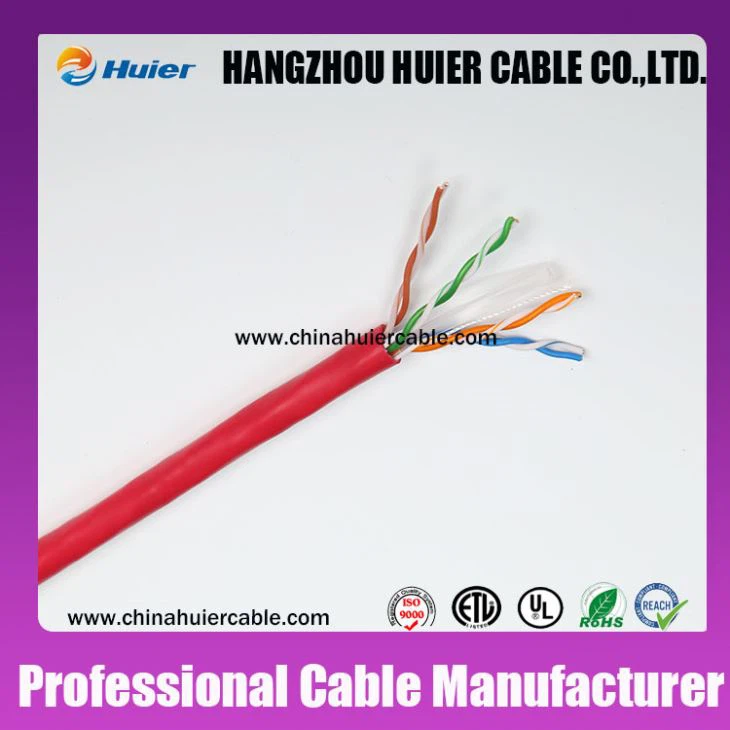

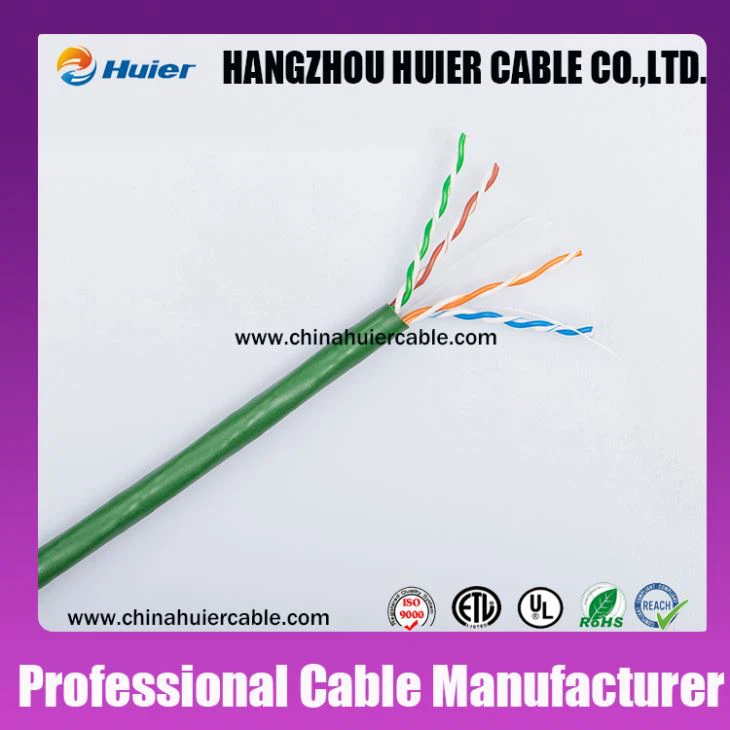

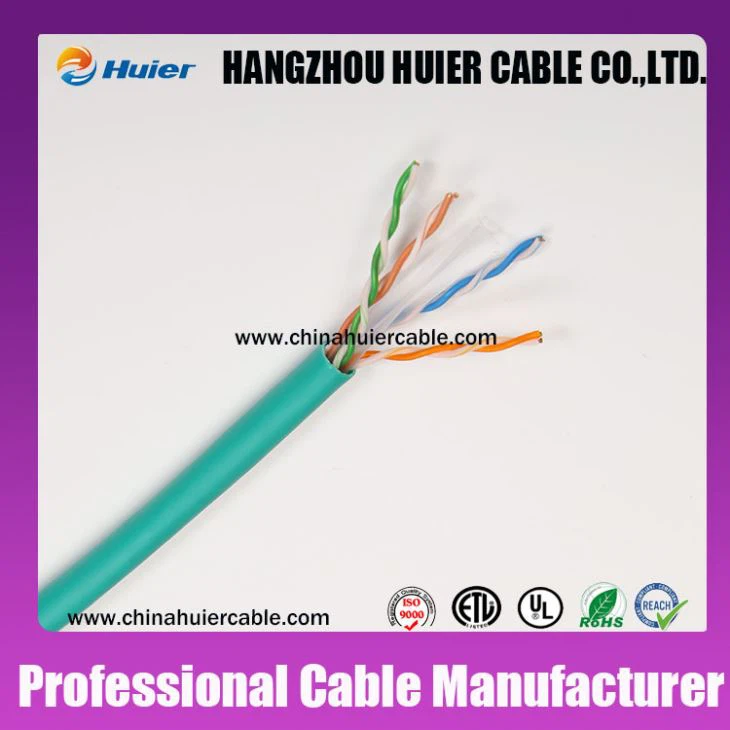

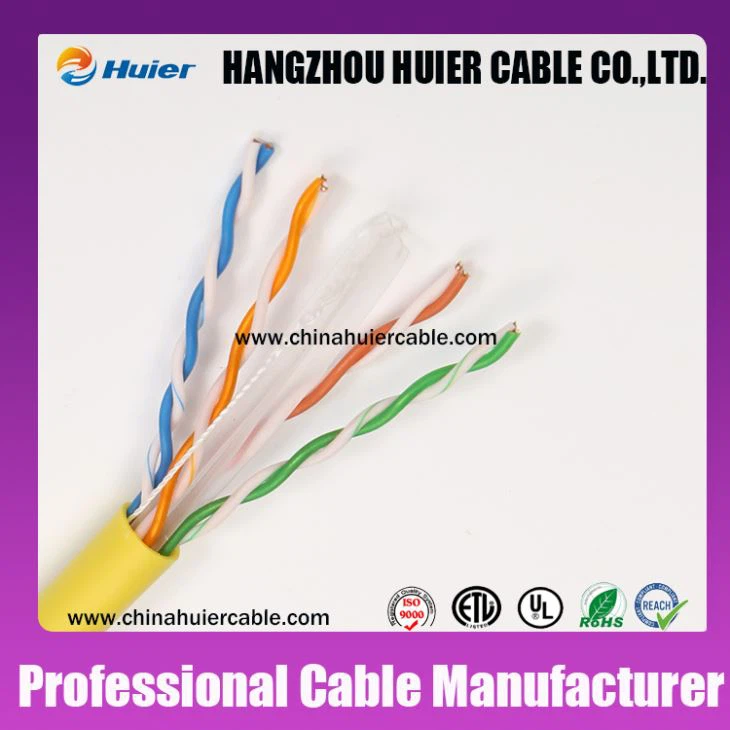

UTP CAT6 NETWORK CABLE
Descriptions:
UTP CAT6 NETWORK CABLE, Unshielded, 4 twisted pairs, PE separator, PVC or PE outer sheath, 250MHz, 1000ft pull-box
Cable Type:
NETWORK CABLE, LAN CABLE, CATEGORY CABLE
Most Popular Specifications:
1. Conductor: 23AWG Bare Copper or Copper Clad Aluminum
2. Insulation: HDPE
3. Cores: 8
4. Pairs: 4
5. Rip cord: nylon
6. Sheath: PVC/PE/LSOH
Cable could be customized as per client's requirements
Mechanical Properties:
Elongation: minimum 300%
Temperature range: -20 up to 75°C
Tensile strength: min 1.68kg/mm²
Conductor resistance: maximum 13.01Ω/100m
Resistance unbalance: maximum 2%
Insulation resistance: maximum 150Ω/km
Mutual capacitance: maximum 5600pF/100m
Capacitance unbalance: maximum 330pF/100m
Impedance: 100±15W
Spark test: 2000V
Velocity of propagation: 67%
Packing:
305M pull-box, 2 boxes in a carton
or, as per client's requirements
Cable marked by footage is packed in an easy Pull-Box for much easier usage and installation.
Certifications:
ISO/CE/ETL/RoHS
Applications :
Computer Network Cabling Project.
Broadband Network Communication.
Ethernet Network
Audio and Data Transmission
ideal for voice, data, network installations, camera installations and more.
Advantages:
Competitive factory price.
OEM and customer’s designation are welcome
Prompt Delivery
Pass Fluke Test
Company Profile:
Established in 2004, Huier Cable owns 25,000 square meters of workshops with advanced inspection & production equipments such as High-pressure injection core line for coaxial cable. Our annual production capacity is 150,000 kilometers of all kinds of 75 ohm & 50 ohm coaxial cable, video-monitoring cable, alarm cable (security cable) and speaker cables, as well as 100,000 standardizing boxes of various shielded network data cables.
We strictly follow ISO9001 quality control system to ensure that our products are 100% qualified before being exported abroad.
Our sales network mainly covers North America, South America, Europe, Southeast Asia, Australia and etc. and almost 100% of our products are exported worldwide.
Hot Tags: UTP CAT6 network cable, China, manufacturers, suppliers, factory, customized, bulk
