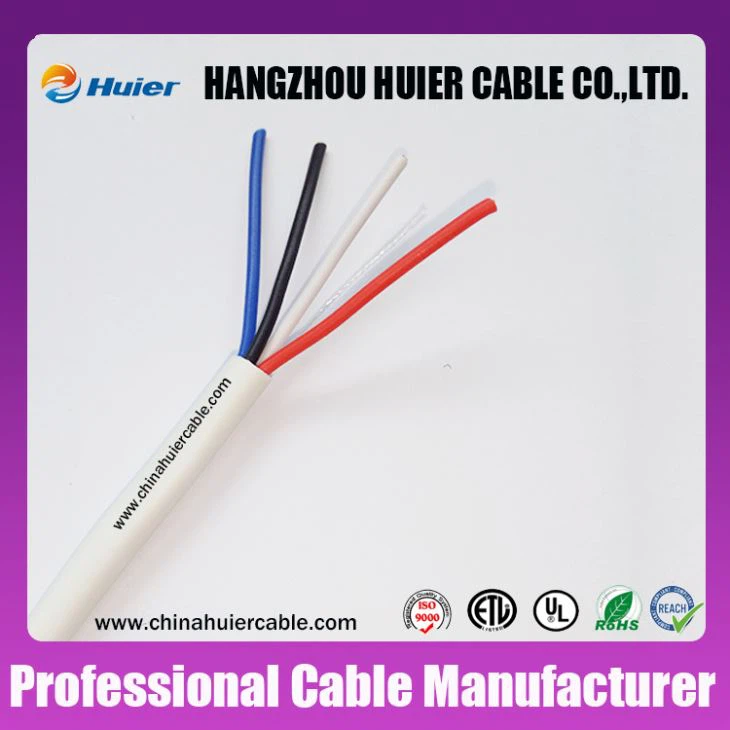

Unshield 4core Alarm Cable
Product Description
Alarm cable
1) Conductor: CCA, TC, BC, Tinned CCA are available, 7*0.12mm, 7*0.16mm, 7/0.18mm, or 7*0.20mm or 7*0.24mm or 7*0.25mm or 24*0.20mm,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC-flame proof or common PVC insulation, CMP, CM.
2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.
3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.
CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.
Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC
4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool
| onductor | Stranded | |
| Size | 23AWG | |
| Diameter(±0.005mm) | 7/0.20 | |
| Insulation | PVC | |
| Average Thickness(mm) | 0.180 | |
| Min.Point Thickness(mm) | 0.170 | |
| Outer Diameter(±0.05mm) | 1.000 | |
| Assembly Diameter(±0.2mm) | 2.500 | |
| Jacket | PVC, white | |
| Average Thickness(mm) | 0.500 | |
| Min.Point Thickness(mm) | 0.450 | |
| Outer Diameter(±0.10mm) | 3.600 | |
| Rip Cord | Yes | |
| Color | White | |
| Color of Wire Insulation | ||
| 1 | Red | |
| 2 | Black | |
| 3 | Yellow | |
| 4 | Blue |
