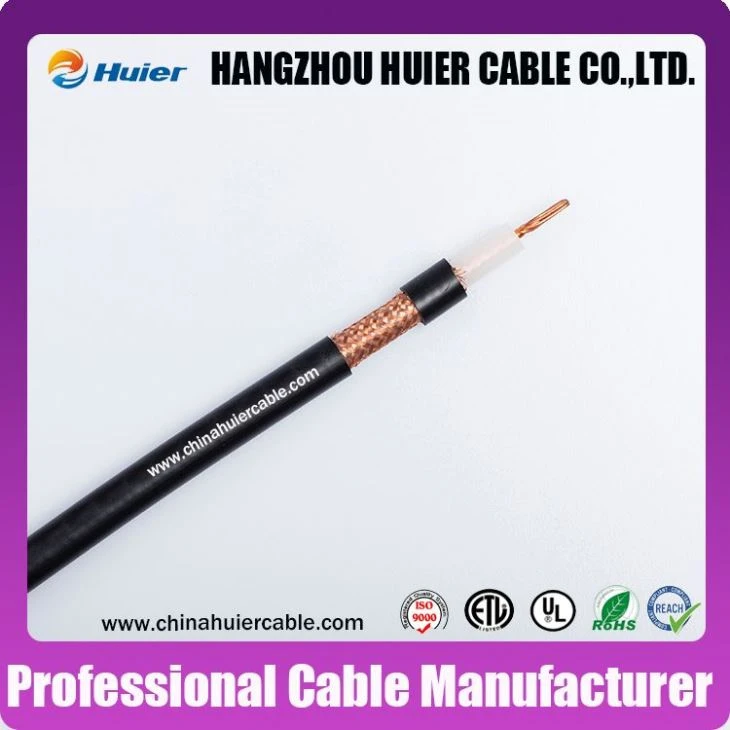

50 Ohms RG8 has been widely applied to radio transmission, base radio antenna station and other communication systems.
Construction:
2.74mm BC/TC+7.24mm S/FPE+AL FOIL BONDED +144*0.15 mmBC/TC WIRE +10.29±0.02 mmPVC
Main Electrical properties: | |||||||
Characteristic impedance |
| 50±2 Ohm | |||||
Rated capacitance |
| 84 | |||||
Velocity |
| 85% | |||||
Operating frequency |
| 1~5800MHz | |||||
Attenuation at typical frequencies: dB/ m | |||||||
500MHz | 1000MHz | 1500mhz | 2000MHz | 2500MHz | 5800MHz | ||
0.902 | 0.131 | 0.168 | 0.196 | 0.222 | 0.355 | ||
VSWR 50~2500MHz |
| 1.25 Max. | |||||
Mechanical Construction: | |||||||
Inner conductor: Solid BC |
| 2.74±0.02mm | |||||
Dielectric: FPE | FPE | 7.24±0.10mm | |||||
Outer conductor: AP+TC |
| 8.13±0.10mm | |||||
Jacket: PVC Black | PVC | 10.29±0.20mm | |||||
BC-- Bare copper,AP-- Polyester tape aluminum foil, TC-- tinned copper,FPE-- Neoflon. | |||||||
Engineering data: | |||||||
Minimum bending radius |
| 50mm | |||||
Operating temperature |
| -20~+70°C | |||||
Reel Length |
| -300m | |||||
jacket-Marking |
| SuiRong SRF-400L coaxial cable | |||||
| Frequency(MHz) | Attenuation(dB/100m) |
| 30 | 2.2 |
| 50 | 2.9 |
| 150 | 5.0 |
| 220 | 6.1 |
| 450 | 8.9 |
| 900 | 12.8 |
| 1500 | 16.8 |
| 1800 | 18.6 |
| 2000 | 19.6 |
| 2500 | 22.2 |
| 5800 | 35.5 |
Inner Packing:
100m/roll, 200m/roll, 300m/roll,100yards/roll; 200yards/roll; 300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden Drum, Carton Box, Pull Out Box
RG8 50 Ohm RF cable Applications:
1) Jumper assemblies in wireless communications systems
2) Short antenna feeder runs
3) Coaxial Cable may be used in many applications
OEM/ODM:
Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement, like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.
