Red and Black Speaker Cable Wire
the conductor can be pure copper or copper cladded steel conductor
condcutor is solid or stranded.
we can produce as per customer's request. Any AWG and Color speaker cables are available
OEM & ODM projects are welcome.

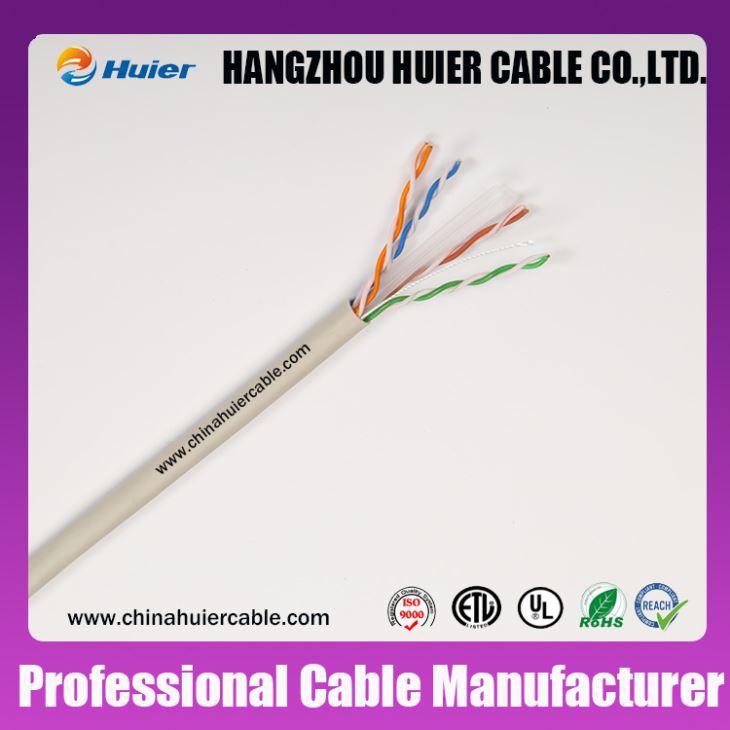

| Type | UTP CAT5e 4*2*0.50 |
| Conductor | 0.50±0.01mm Bare copper |
| Insulation | 0.90mm HDPE |
| Total number of insulated conductor | 8, twisted in 4 pairs |
| Color code | white-blue/blue,white-orange/orange, white-green/green,white-brown/brown |
| Individual pair shield | none |
| Overall shield | none |
| Drain wire | none |
| Sheath | 5.1mm PVC |
Options: Jelly Compound, Jacket: UV, RoHS complied.
Application:
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013
Electrical Performance:
| Impedance 1.0-100.0MHz (ohms) | 100±15 |
| D.C, Resistance @20ºC(ohms/km) | ≤9.5 |
| D.C. Resistance Unbalance(%) | Max 2.5 |
| Insulation Resistance | >5000MΩ*KM |
| Rated Temperature | 70ºC |
Technical Performance:
| Frequency (MHz) | Return loss (dB) | Attenuation (dB/100m) | NEXT (dB) | FEXT (dB) |
| 1 | 20.00 | 2.10 | 64 | 63.8 |
| 4 | 23.01 | 4.30 | 55 | 51.7 |
| 10 | 25.00 | 6.60 | 49 | 43.8 |
| 16 | 25.00 | 8.20 | 46 | 39.7 |
| 20 | 25.00 | 9.20 | 44 | 37.7 |
| 31.25 | 23.64 | 11.80 | 42 | 33.8 |
| 62 | 21.54 | 17.10 | 37 | 27.6 |
| 100 | 20.11 | 22.00 | 34 | 23.6 |
